RJ-250SC Self Contained Compactor
The RJ-250 units are state-of-the-art in roll-off self-contained compactors featuring
oversized feed opening and expanded container storage capacity. They are designed to
store and transport your wastes, prevent contamination of your work and public areas
in accordance with public health department requirements, improve working conditions
for your employees and reduce disposal costs.

RJ-250SC Features :
• Large 41" x 58" feed opening to handle bulky items!
• Continuous feeding capability — even while compactor is
  operating!
• Adaptable to special loading systems such as large capacity
  hoppers,security chutes or total enclosures.
• Total odor and pest control via Marathon's Ozone Odor Control
  option
• Easy loading from either ground or dock level.
• Over 24 tons of crushing force to reduce refuse to a fraction of
  its former size saving valuable space.
• Fits into same space as industry pace-setting RJ-100SC! Extra
  length roll-off hoist is not required!
• Easy and fast installation! Installation costs are cut by half over
  conventional compaction systems.
• Fire hose connection provided on each unit.
• Factory testing to assure leakproof construction.

The RJ-250 Compactors combine the ability to safely store
high-liquid content wastes in controlled environments with
the conveniences and economics of compaction! Offering
maximum benefits for:

• Malls
• Supermarkets
• Large Restaurants
• Hotels
• Hospitals and institutions
• Resorts and food processors


  Engineering
Components are selected for longevity and minimum maintenance, with special attention given to the selection of highly sensitive components. Stress engineering provides the optimum degree of structural integrity. Only the best materials are used. The highest standards of quality are observed in the manufacturing process. That's why you'll find Marathon Compactors "packing trash" long after other makes have failed!
RJ-250SC Compactor can be customized with a variety of loading arrangements to suit your specific needs.
UL ListedMarathon's RJ-250SC Self Contained Compactor is UL Listed!


Features & Benefits of Marathon's Self-Contained
Wet Waste Compaction Equipment:

• Marathon's CYCON Life-Xtender® Cyclic Control System:
  eliminates troublesome limit and pressure cycle control switches. It also
  reduces trash removal cost by producing superior payloads and dramatically
  improving cold weatherperformance.
• Marathon's compactors meet all of ANSI and OSHA standards.
• Each unit is UL Listed to assure quality and maintains the highest industry
  standards (does not apply to GreenBuilt).
• Standard double end pick-up (except HT models) which allows the unit to be
  loaded for hauling from either end. This is especially useful if the   self- contained unit is perpendicular to a dock.
• Through-the-wall feed chutes offer convenience to employees that reduces   labor cost and improves security.
RJ-250SC Specifications :

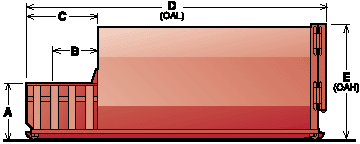

Dimension A B C D** E LBS.
15 cu yds 4'— 0" 3' — 7-1/4" 5' — 7" 14' — 3" 7' — 5" 8,860lbs.
1219mm 1099mm 1702mm 4343mm 2261mm 4173kg
20 cu yds 4' — 0" 3' — 7-1/4" 5' — 7" 17' — 4" 7' — 5" 9520lbs.
1219mm 1099mm 1702mm 5283mm 2261mm 4318kg
25 cu yds 4' — 0" 3' — 7-1/4" 5' — 7" 17' — 10-1/2" 8' — 8" 10,030lbs.
1219mm 1099mm 1702mm 5436mm 2642mm 4550kg
30 cu yds 4' — 0" 3' — 7-1/4" 5' — 7" 20' — 5" 8' — 8" 10,620lbs.
1219mm 1099mm 1702mm 6223mm 2642mm 4818kg
34 cu yds 4' — 0" 3' — 7-1/4" 5' — 7" 22' — 5" 8' — 8" 11,130lbs.
1219mm 1099mm 1702mm 6833mm 2642mm 5049kg
39 cu yds 4' — 0" 3' — 7-1/4" 5' — 7" 24' — 11-1/2" 8' — 8" 11,790lbs.
1219mm 1099mm 1702mm 7607mm 2642mm 5348kg
** Other lengths available. Call factory for details.


Charge Box Capacity
[Mfrs. Rating] 1.7 cu yd 1.30 m3
[WASTEC Rating] 1.31 cu yd 1.00 m3
Clear Top Opening 41"L x 58"W 1041mm x 1473mm
Performance Data:
Cycle Time 33 seconds 33 seconds
Total Normal Force 39,900 lb 177 kN
Total Maximum Force 49,500 lb 220 kN
Normal Ram Face Pressure 27.1 psi 187 kPa
Maximum Ram Face Pressure 33.7 psi 232 kPa
Ram Penetration 6" 152 mm
Electrical Equipment:
Electric Motor 3/60/230-460 10 hp 7.5 kW
Electric Control Voltage 120 VAC 120 VAC
Panel Box Assembly
UL Rated Key Operated
All Circuits Fused - 3 Push Button Station Start/Stop/Reverse
Hydraulic Equipment:
Hydraulic Pump 10 gpm 38 L/min
Normal Pressure 1850 psi 128 bar
Maximum Pressure 2300 psi 159 bar
Cylinder Bore 2 @ 4" each 102 mm
Cylinder Rod 2 @ 2-1/2" each 64 mm
