M-1475XW

Marathon's M-Series, Extra Heavy-Duty Compactors are made up of a Packer Module,
Cyliner & a PowerModule. Select the Packer Module based on the size of material to be
processed and select the Cylinder & Power Module based on your throughput and
performance requirements.



Specifications :

  •

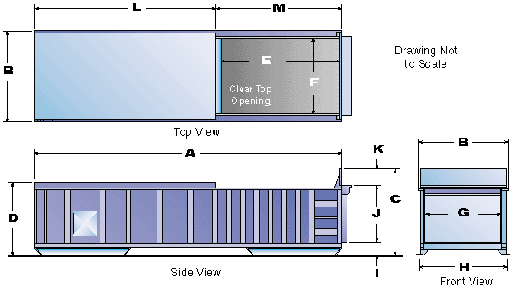

Dimension A B C D E F G
Imperial 318" 92 3/4" 90" 74" 123" 77 1/2" 79 1/4"
Metric 8077mm 2356mm 2286mm 1876mm 3124mm 1969mm 2013mm

Dimension H I J K L M
Imperial 91 1/4" 14 1/2" 58 1/2" 17" 190" 128"
Metric 2318mm 362mm 1486mm 132mm 4826mm 3251mm


Specifications
Charge Box Capacity 15.0 cy. (11.5m3) - Mfrs. Rating
Clear Top Opening 123" x 77 1/2" (3124mm x 1969mm)
Ram Penetration 25" (635mm)
Weight 34,100 lbs. (14,470 kg) - does not include power unit weight
M-1475XW Cylinder & Power Modules - Remote Power Unit
Model # Motor: Pump: Cycle Time: Cylinder Size: Maximum Force: Maximum System Pressure:
9-3075V 30 HP (22.4 kW) 75 gpm (283.9 L/min.)
Vane Pump
51 Sec. 9" (229mm) 159,000 lbs.
(707 kN)
2500 psi.
(172.4 bar)
9-50100V 50 HP (37.3 kW) 100 gpm (379 L/min.)
Vane Pump
39 Sec. 9" (229mm) 159,000 lbs.
(707 kN)
2500 psi.
(172.4 bar)
9-50125V 50 HP (37.3 kW) 125 gpm (473 L/min.)
Vane Pump
21 Sec. 9" (229mm) 190,900 lbs.
(849 kN)
3000 psi.
(207 bar)
To order, please list the Packer Model Number followed by the Cylinder/Power Model
Number - i.e.: M-1050XW 9-3075V
Electrical Equipment
Motor 3/60 -208/230/460
Control Voltage 120 VAC
Panel Box UL Listed; type NEMA 3R; All Circuits Fused
Standard Controls 2 Button: Keylock Start/Mushroom Stop; Forward/Reverse; Connected to 13 ft. Sealtite
